Flex
Our Flex modules are full-size and designed for installation on a 2 degree pitch or less on membrane roofs (TPO, or EPDM). Installation of Flex60 on steeper curves or slopes may be possible if the roof stack is Class A fire rated. Low crickets are no problem.
The Array Flex Series solar modules are made perfect for TPO, or thermoplastic polyolefin—a single-ply smooth roofing membrane that is becoming increasingly popular for residential roofing systems.
Thin, lightweight, flexible and durable
Faster, easier installation - just peel and stick. Requires no penetrations.
Sunflare solar panels weigh just 11 pounds. These modules are 86% lighter than silicon. Requires no racking, and no heavy ballastsa
Flexible CIGS Sun2 cells are encapsulated between durable polymer sheets. No glass.
Warranty for product workmanship and power production: 25-years for roofs.
UL, IEC, CEC Listed. Class A fire rated

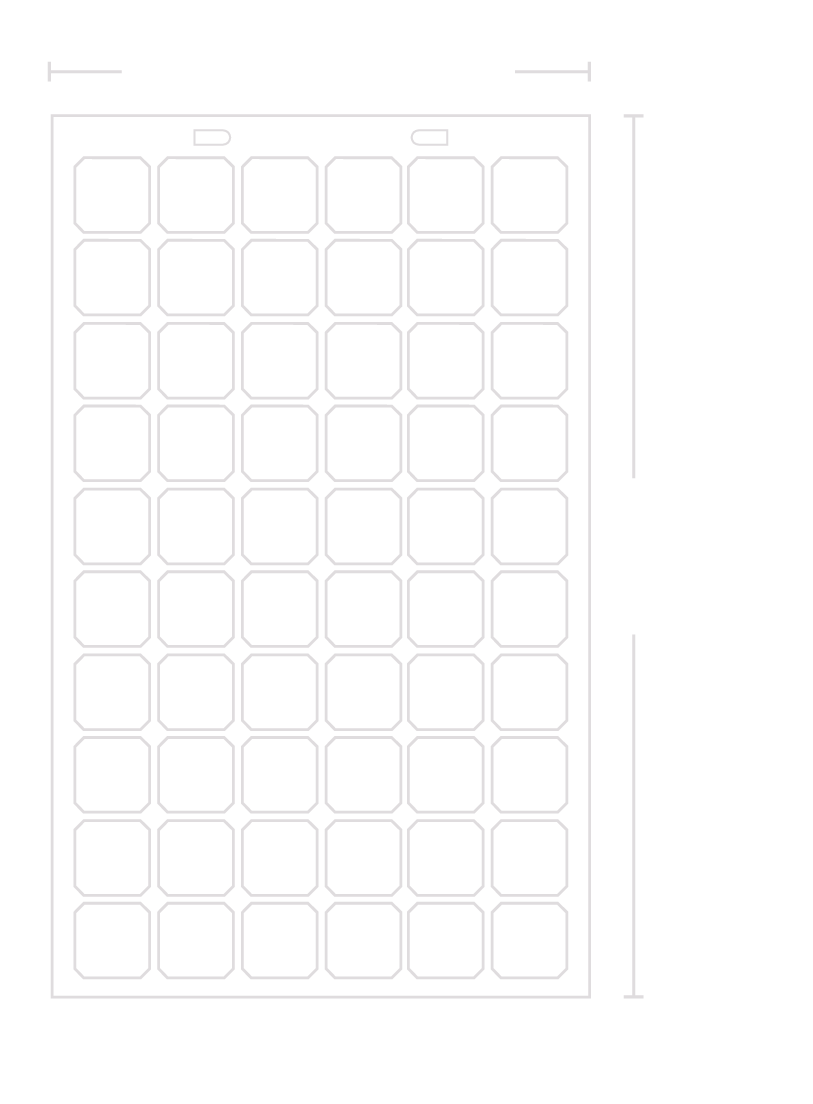

Flex60 Panel Specifications
Peak Power (+5/-0%)
185W
Aperture Efficiency
16%
Weight
5kg (11 lbs)
Temperature Coefficient for Power
-0.35 %/°C
Snow Down-Force Load
125 lbs./sqft
Wind Up-Force Load
113 lbs./sqft
Warranty
25 years
Certifications
UL 1703 , IEC 61215, IEC 61730, ISO 9001:2015, +ISO 14001:2015, CEC Listed
Get in touch
Want to learn more about Array’s modules?
**We are experiencing high call volume and customer support during the launch of our Powerfit 20. Please allow 48 hours to receive a call back.
Our Flex modules are thin, lightweight, flexible, and durable like all Array modules.
The peel-and-stick installation is fast and easy, requiring no penetrations to the roof.
Flex modules weigh a mere 11 pounds and are significantly lighter than traditional silicon panels.
No racking or heavy ballasts are required.
Dvele Installation
Sunflare modules are the best solar panel in partial shade. Sunflare modules have bypass diodes for each individual cell. This means when a cell is shaded, only that individual cell stops producing power. Traditional solar modules have a bypass diode per string of cells. Therefore, if just one cell is covered the whole string will not produce power. If the shade is across a single row, the entire panel can be knocked out.
